BNTECHGO 26 AWG 1007 Electric Wire 26 Gauge PVC 1007 Wire Stranded Wire Hook Up Wire 300V Stranded Tinned Copper Wire Black 100 ft Per Reel for DIY
Description

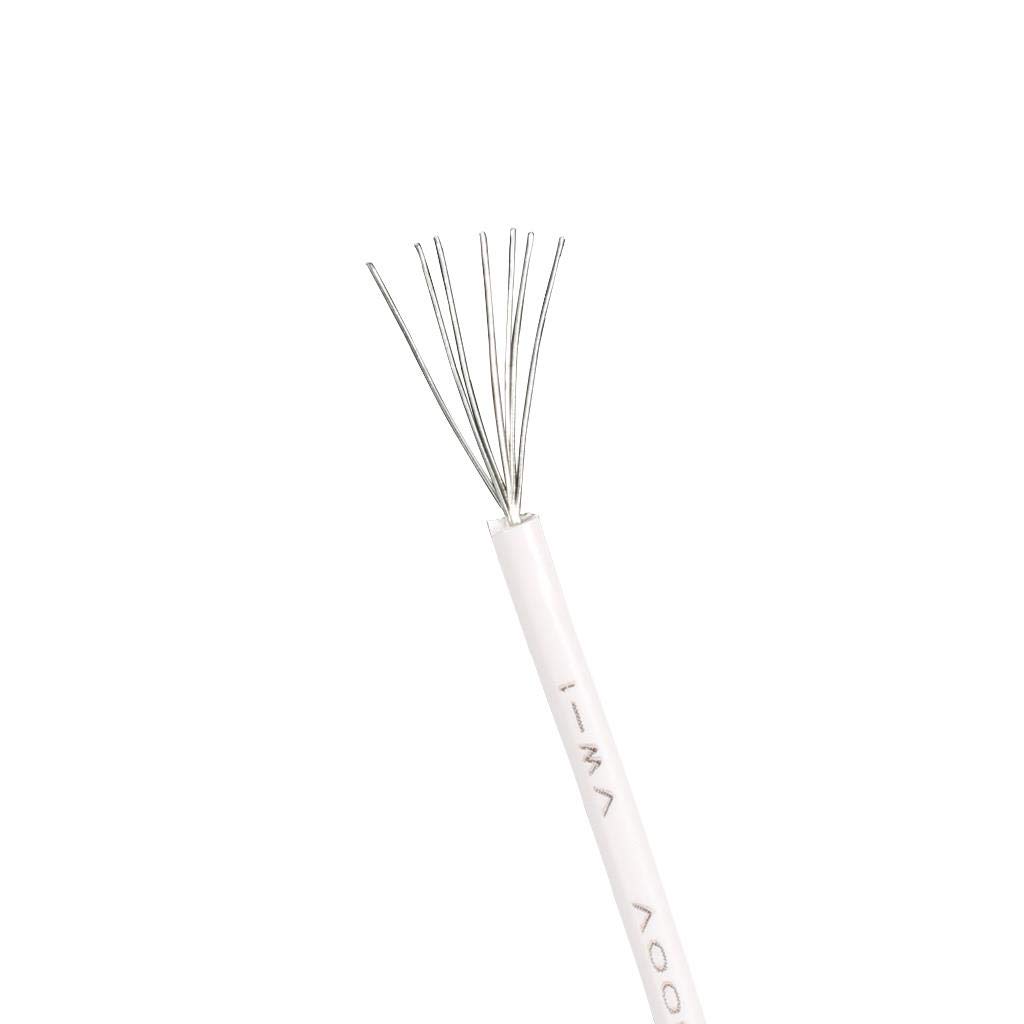

- Flexible 1007 26 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath.
- Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C.
- Easy handling,stripping,and termination: Low-fray design.
- Flame retardant: VW-1.
- This hook-up wire is recommended for internal wiring of electrical or electronic equipment.
- ›See more product details

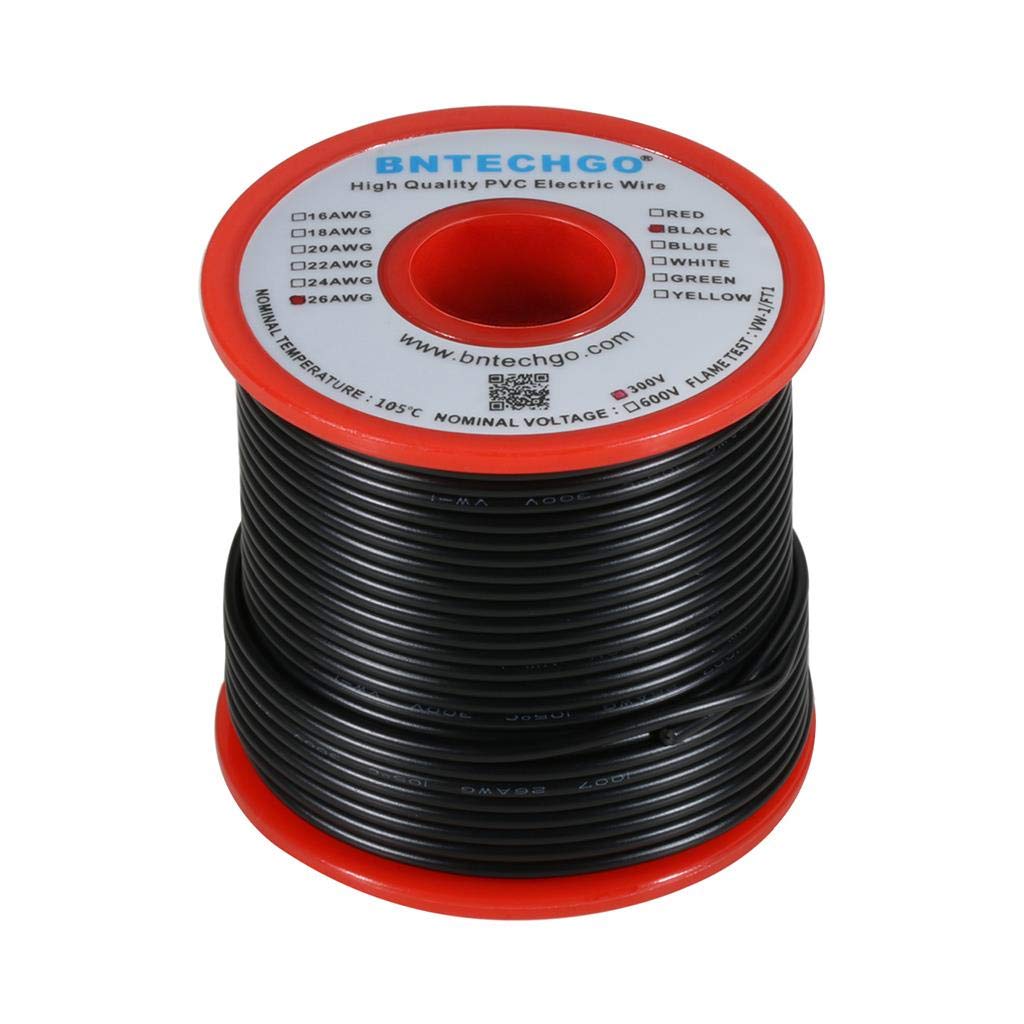

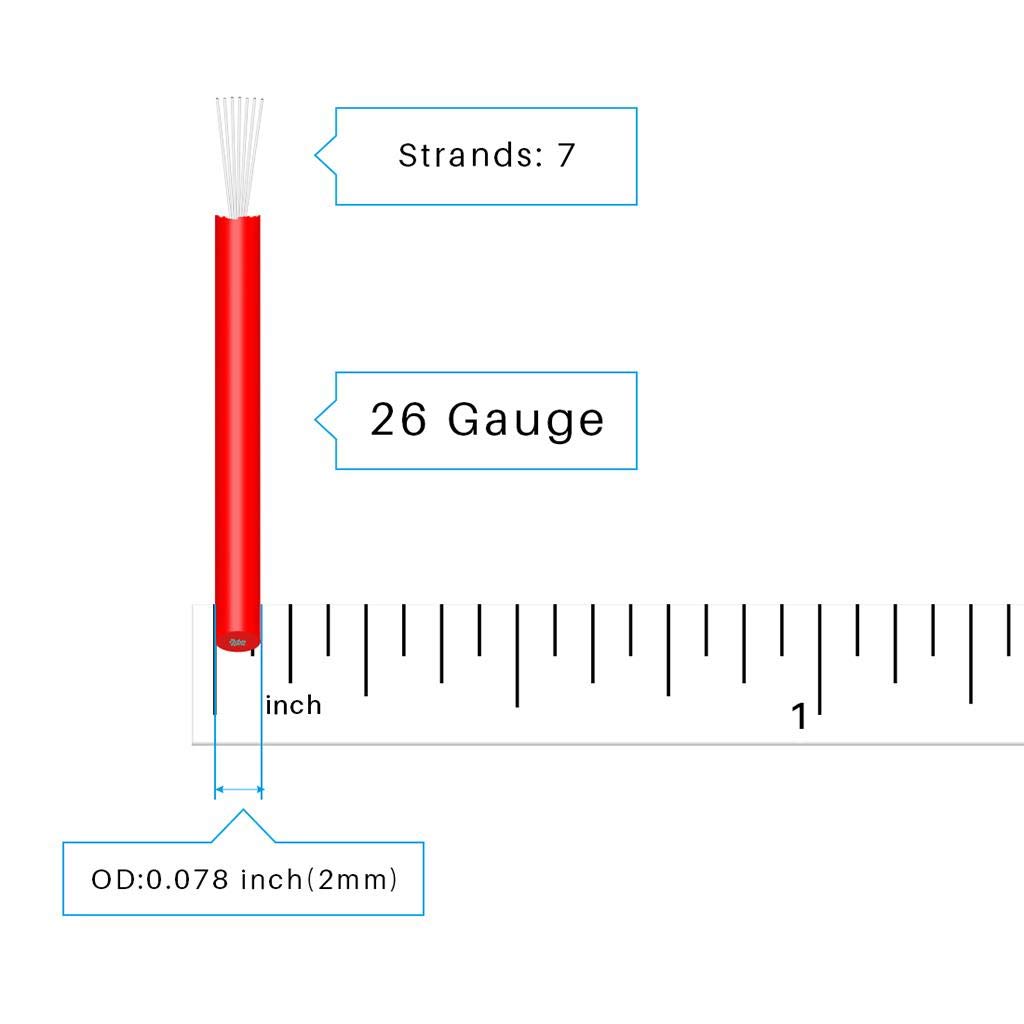

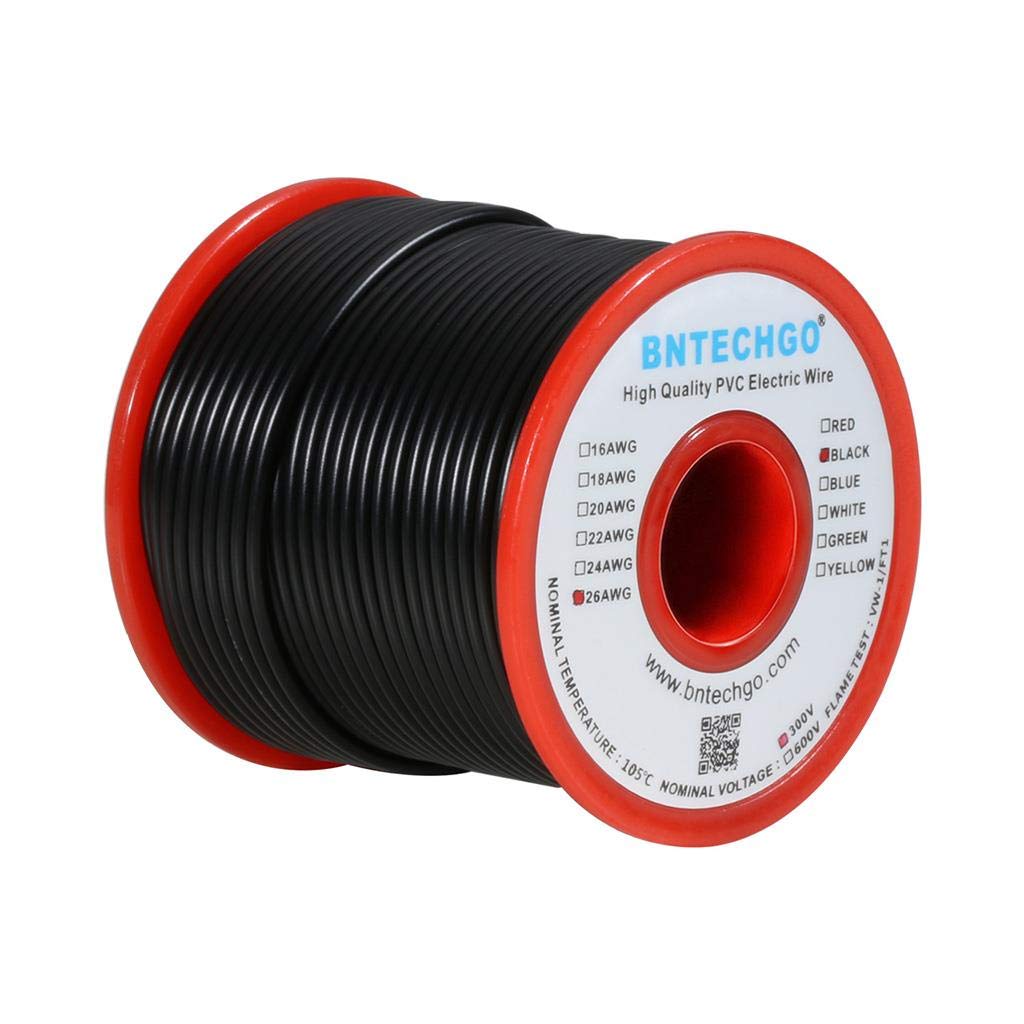

Size Name:100ft  |  Colour Name:Black Features Flexible 1007 26 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath. Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C. Easy handling,stripping,and termination: Low-fray design. Flame retardant: VW-1. This hook-up wire is recommended for internal wiring of electrical or electronic equipment. Specifications Conductor AWG: 26 Conductor Material: Tinned Copper Conductor Construction: Stranded 7×0.15±0.008mm² Conductor OD: 0.46±0.05mm Insulation: PVC(Polyvinylchloride) Over Dia.: 2.0±0.1mm Jacket Colour: Black Rated Temperature: 105°C Rated Voltage: 300V FLAME TEST: VW-1 Packaging: Black 100ft per reel
Reviews
O**G
Good Quality
I was planning on using this gauge size to connect up to 50 individual WS2812B LEDs for a wearable design. The physical flexibility and electrical specs should be more than sufficient for this application.
C**S
Good wire, very large insulation comparatively to other brands.
The wire seem good (doesn't feel cheap) and the packaging/spools are nice,. Just keep in mind that the PVC insulation is huge (2.1mm//0.0825") compared to other brands of 26awg wire. For instance the NTE brand 26awg we normally use is 1.20mm//0.0470". By itself it is not a problem but when you are making wiring harnesses with 20+ wires in them the extra diameter is significant.
